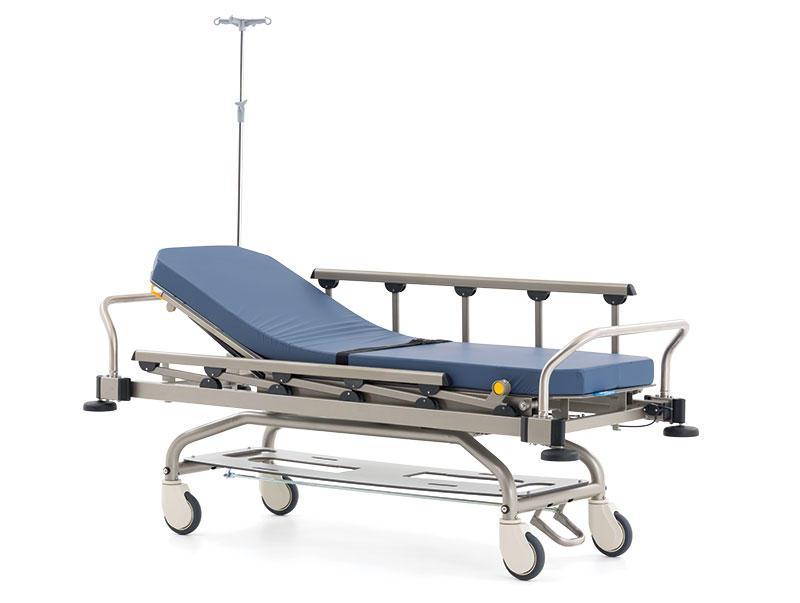

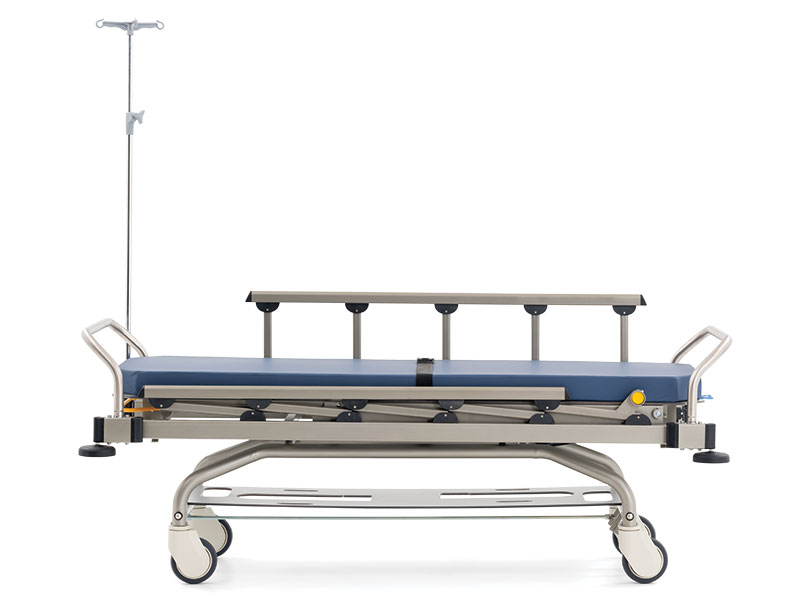

APOLLO

PATIENT TROLLEY

This Patient Trolley is suited to patient examination, transportation, treatment and recovery in a range of healthcare departments. It has easily accessible pedals to adjust height and Trendelenburg and a simple, user-friendly release leaver, the backrest is also entirely adjustable to 90°. A safe working load of 250kg (39 stone) comes as standard.

Standard Specification

  • Nano ceramic, electrostatic epoxy polyester powder metal parts
  • 2-piece, easy clean HPL lying surface
  • Single button collapsible side rails
  • Bumpers and holes for accessories in all corners
  • Height adjustable IV pole
  • Stainless steel pushing bar located at both ends of stretcher
  • 360° turning swivel casters equipped with central and directional lock (150mm)
  • Gas spring controlled Trendelenburg adjustment
  • Gas spring controlled backrest adjustment
  • Oxygen bottle holder
  • 8cm thick mattress suitable to the lying surface
TMPS3 - Apollo Patient Trolley

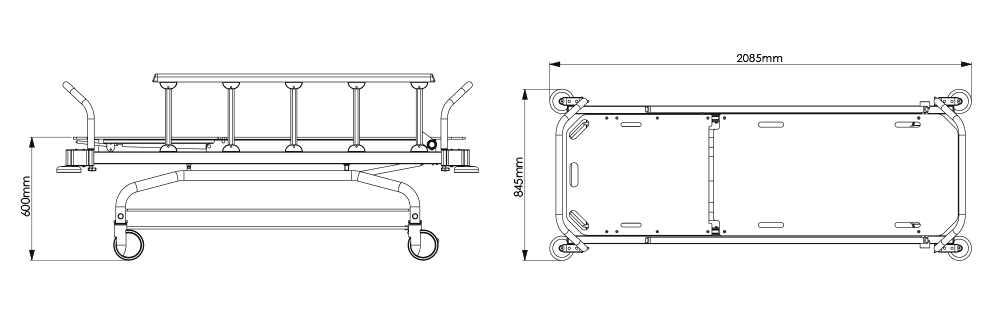

dimensions
  • Defi brillator table
  • X-ray cassette carrier
  • Width (Overall): 84.5cm
  • Length (Overall): 208.5cm
  • Height: 60cm
  • Lying Surface: 193.5 x 60cm
  • Backrest Angle: 90°
  • Trendelenburg: 12°
  • 2 year warranty on moving components
  • EEC classifi cation - MDD93/42/EEC Annex IX Class 1
  • Vinyl fl ame retardant to CRIB5 (BS7176 inc. foam)
