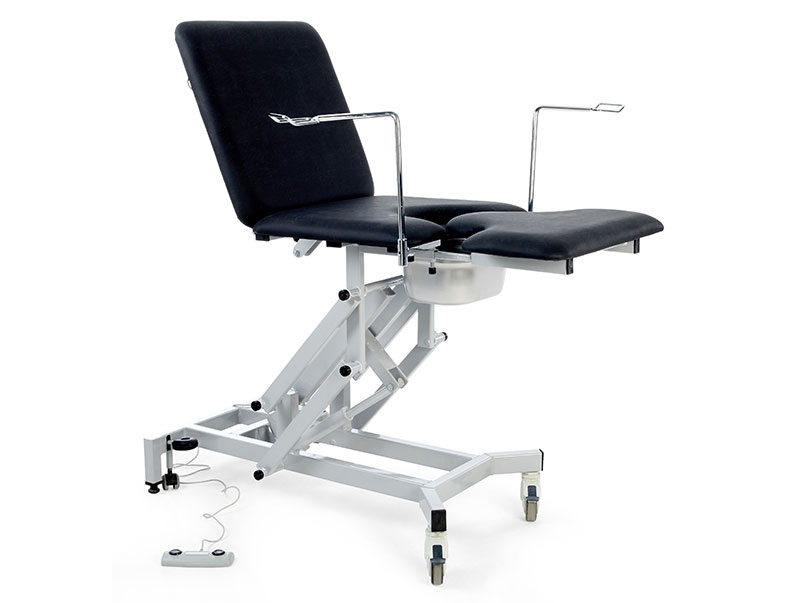

GYNAECOLOGY

COUCH

A treatment couch designed for general gynaecology procedures featuring electric adjustment of height, a fixed 5º tilted seat and manual backrest. All models feature a crescent shaped seat section, stainless steel debris tray, arm loops and fully adjustable leg supports.

Standard Specification

  • Safe working load and lifting capacity of 250kg (39 stone)
  • Electric height adjustment from 52cm (20”) to 106cm (42”)
  • Extension piece with shaped pad to fit in crescent cut out
  • Adjustable manual backrest +85º
  • Compact base with retractable castors
  • Antimicrobial contoured upholstery
  • Precision bearings on all pivot points
  • 50mm high density flame-retardant foam
  • Hoist clearance along length of couch
  • Adjustable foot for stability on uneven ground
TMG1E - Gynaecology Couch - electric height elevation

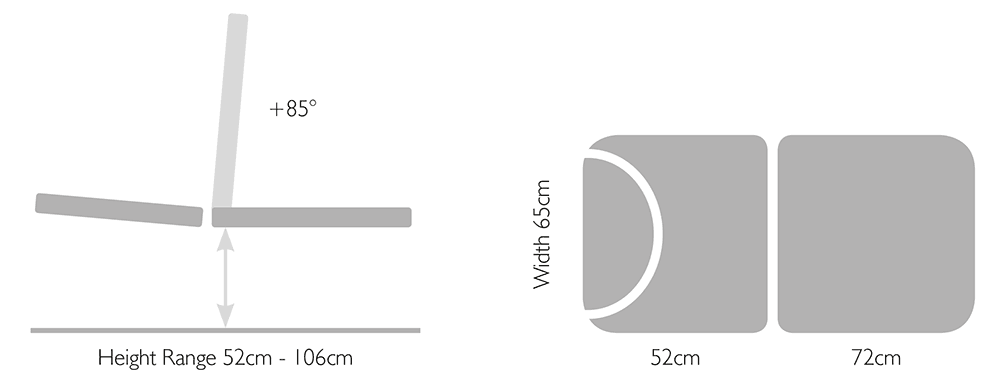

dimensions
  • Seat extension
  • Paper roll holder
  • Length: 125cm (with extension piece 163cm)
  • Width: 65cm
  • Safe Load: 250kg
  • Height range: 52cm - 106cm
  • 3 year warranty on moving components
  • Lifetime warranty on frame
  • Fully compliant and CE marked
  • EEC classification - MDD93/42/EEC Annex IX Class 1
  • Electrical standard - IEC601 Part 1 + 60601. P (EN)
  • IP rating - IPx4
  • Vinyl flame retardant to CRIB5 (BS7176 inc. foam)
  • Foam to BS 5852: Part 2: 1982, Ignition Source 5 (CRIB5)
