ELITE RANGE

3 SECTION

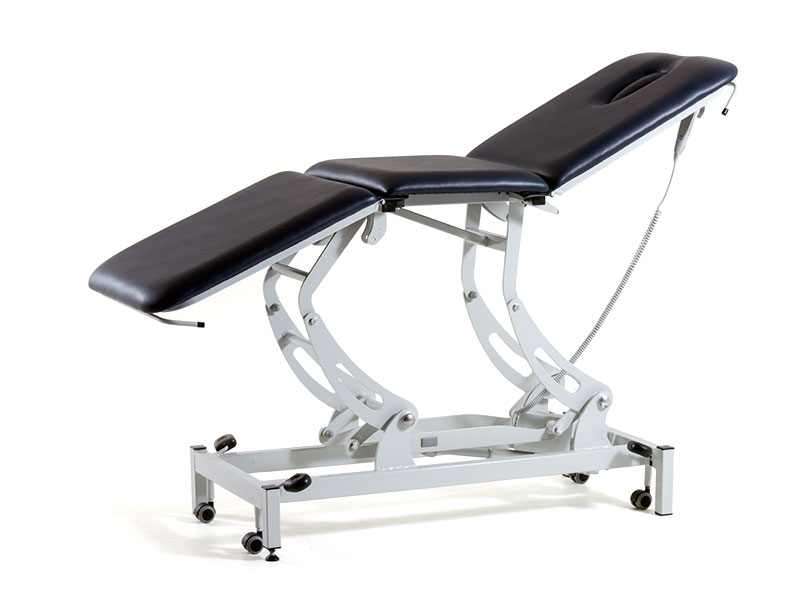

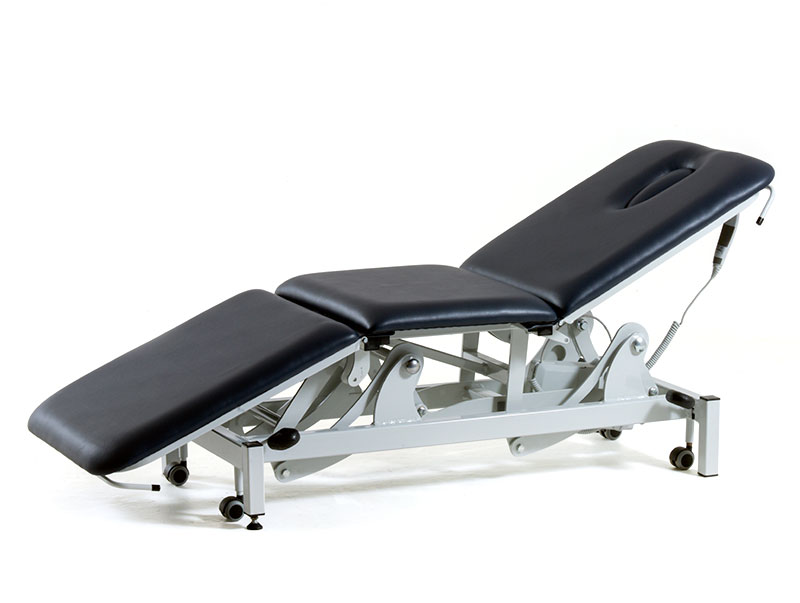

Our top-of-the-range three section Elite treatment couch is both strong and robust whilst being aesthetically pleasing. Featuring twin lift mechanism for added stability, the Elite range is fitted with Power-Packer hydraulic pumps and Linak motors as standard. Ideal for a wide range of healthcare environments and treatments procedures with 55mm retractable positioning castors and an adjustable self-levelling foot.

Standard Specification

  • Safe working load and lifting capacity of 275kg (43 stone)
  • Gas spring assisted back rest from -25º to +80º
  • Hydraulic or electric height elevation
  • Power assisted head section incorporates anti-trap design
  • Excellent height range from 48cm to 102cm
  • Purpose made precision bearings on all pivot points
  • Hoist clearance 135mm along entire length of couch
  • Hand switch fitted as standard on electric models
  • 40mm high density flame-retardant foam
  • Antimicrobial contoured upholstery
  • Fully compliant and CE marked
TME3H - Hydraulic height elevation
TME3E - Electric height elevation

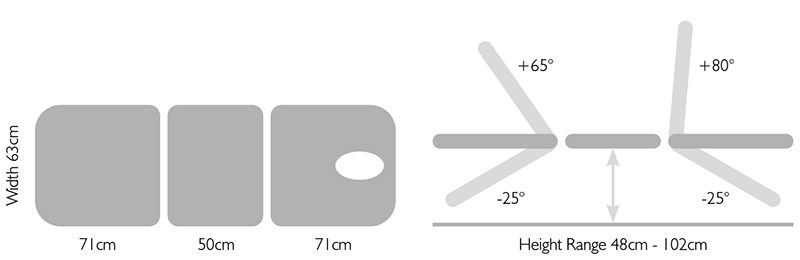

dimensions

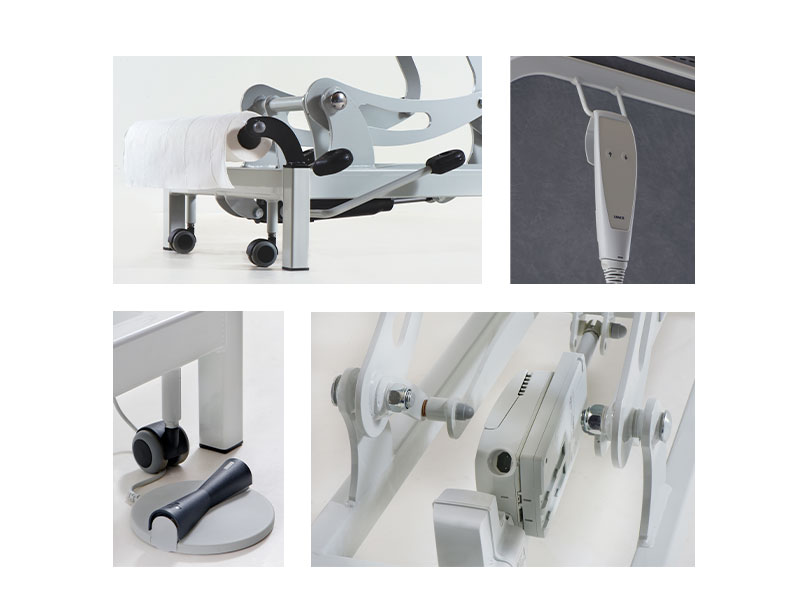

  • Breathing hole
  • Single foot switch operation for electric models
  • Double foam
  • Paper towel holder
  • Battery backup
  • 75cm width
  • Width: 63cm
  • Length: 195cm (head 71cm, seat 50cm, foot 71cm)
  • Height range: 48cm - 102cm
  • Safe Load: 275kg
  • 3 year warranty on moving components
  • Lifetime warranty on frame
  • EEC classification - MDD93/42/EEC Annex IX Class 1
  • IP rating - IPx4
  • Electrical standard - IEC601 Part 1+ 60601.P (EN)
  • Vinyl flame retardant to CRIB5 (BS7176 inc. foam)
  • Foam to BS5852: Part 2: 1982, Ignition Source 5 (CRIB5)
  • Suitable for high traffic contract areas rated to 100,000 martindale rubs
