TILTING

PODIATRY CHAIR

Being aesthetically pleasing, very strong and robust, this triple motor chair is our most popular podiatry chair and has all features of the model TM3P but with the added benefit of Trendelenburg seat tilt and foot control as standard. This greatly enhances patient comfort and allows the foot end to rise up to a full 65” (165cm) for unrivalled access whilst doing heelwork or for operating when standing up.

Standard Specification

  • Electric height, motorised backrest and trendelenburg tilt adjustment
  • Leg section adjustable from -30º to +30º, seat tilt from 0 to +25º & backrest adjustment from -15º to +90º
  • Stay level swing back arm rests for easy patient access (arms also removable)
  • Leg length adjustment +15cm (6”) on divided leg model
  • Purpose made precision bearings on all pivot joints

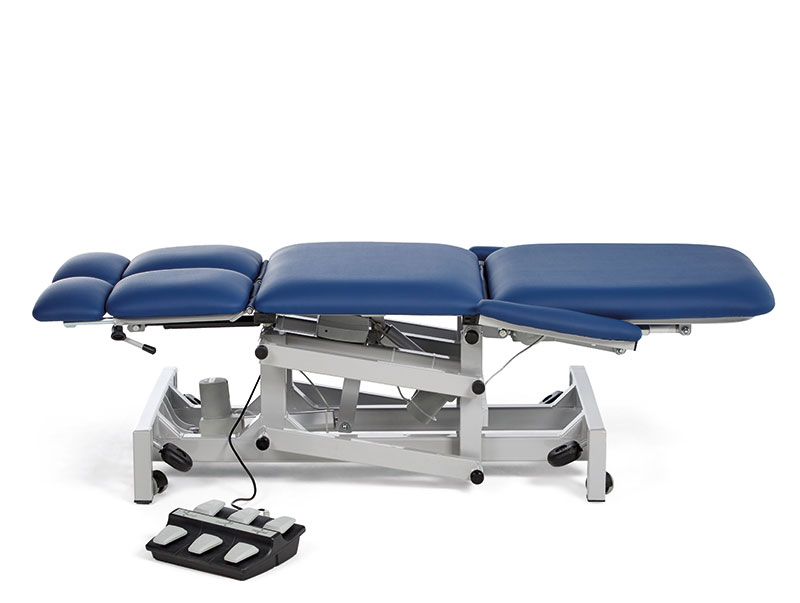

  • Couch goes horizontal for patient recovery in emergency situations
  • Robust retractable castors for excellent mobility and safety
  • Footrest adjustment by gas strut mechanism
  • Adjustable foot for uneven floors

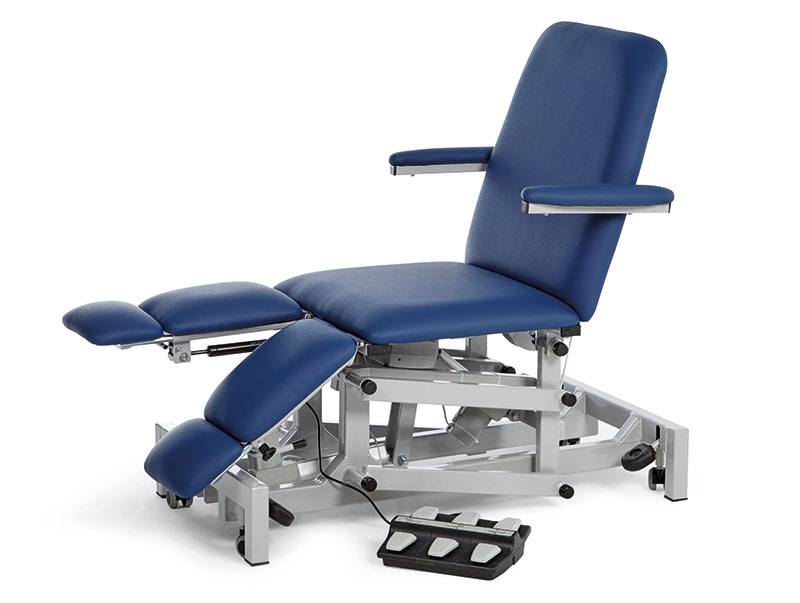

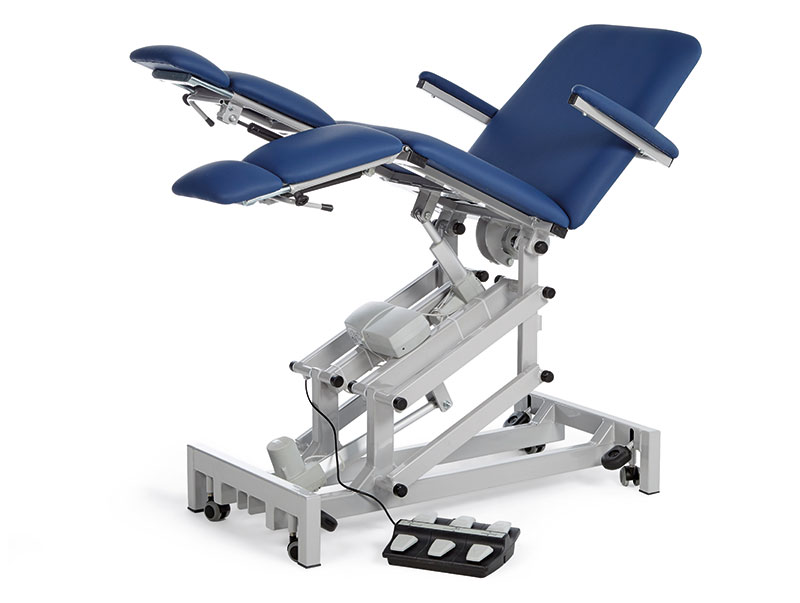

TM3PT - Triple Footswitch Electric Tilting Podiatry Chair

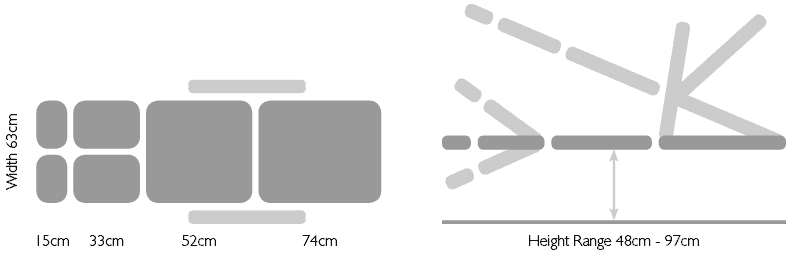

dimensions
  • Single Leg Section
  • Breathing hole and plug
  • Paper roll holder
  • Double thickness padded upholstery
  • Matching operators chair or stool
  • Length: 174cm
  • Width: 63cm
  • Safe Load: 250kg
  • Height range: 48cm - 97cm
  • 3 year warranty on moving
  • components
  • Lifetime warranty on frame
  • Fully compliant & CE marked
  • EEC classification - MDD93/42/EEC Annex IX Class 1
  • Electrical standard - IEC601 Part 1 + 60601. P (EN)
  • IP rating - IPx4
  • Vinyl flame retardant to CRIB5 (BS7176 inc. foam)
  • Foam to BS 5852: Part 2: 1982, Ignition Source 5 (CRIB5)
