PHLEBOTOMY

ELECTRIC COUCH

With the foot section dropping to 90º, this versatile and compact drop end three section couch allows for optimum use in smaller treatment areas. A specialist couch designed to provide a comfortable and easy access seat position for blood sampling procedures. All models are fitted with a pair of multi-adjustable arm rests which can be easily removed allowing the chair to be used for a range of minor procedures.

SPEC SHEET

Standard Specification

  • Electric height adjustment
  • Leg section adjustable from -90º to +5º
  • Backrest adjustment from -15º to +90º
  • Stay level swing back arm rests for easy patient access (arms also removable)
  • Couch goes horizontal for patient recovery in emergency situations
  • Robust retractable castors for excellent mobility and safety
  • Purpose made precision bearings on all pivot joints
  • Footrest adjustment by gas strut mechanism
  • Adjustable foot for uneven floors
TMPB - Phlebotomy Couch electric height elevation

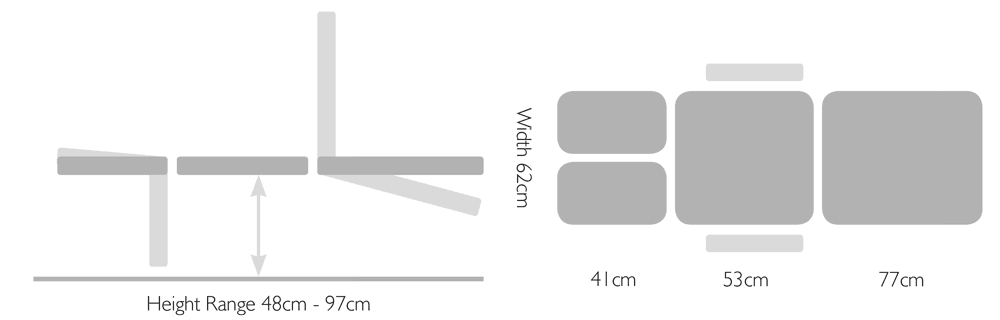

dimensions
  • Motorised backrest
  • Single leg section
  • Breathing hole and plug
  • Paper roll holder
  • Double thickness padded upholstery
  • Length: 174cm
  • Width: 62cm
  • Height range: 48cm - 97cm
  • Safe Load: 250kg
  • 3 year warranty on moving components
  • Lifetime warranty on frame
  • Fully compliant and CE marked
  • EEC classification - MDD93/42/EEC Annex IX Class 1
  • IP rating - IPx4
  • Electrical standard - IEC601 Part 1+ 60601. P (EN)
  • Vinyl flame retardant to CRIB5 (BS7176 inc. foam)
  • Foam to BS 5852: Part 2: 1982, Ignition Source 5 (CRIB5)
