DROP END

MULTI-PURPOSE COUCH

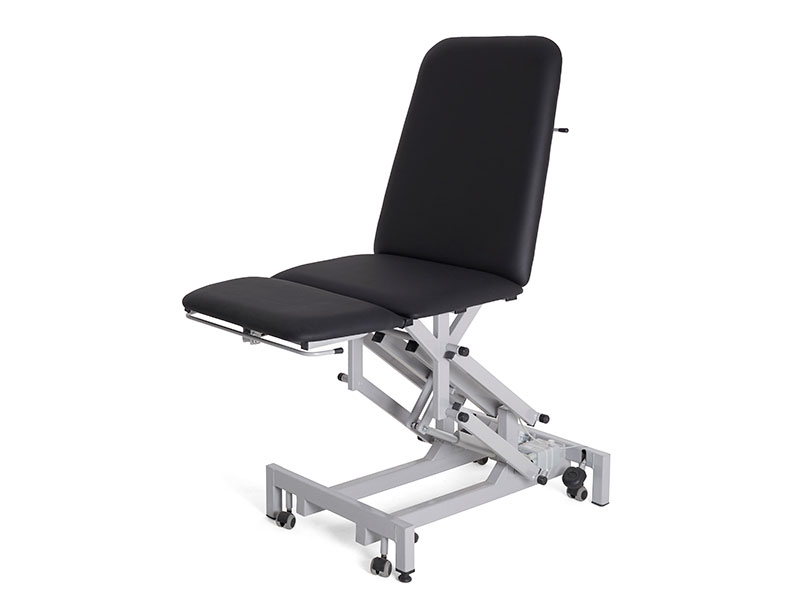

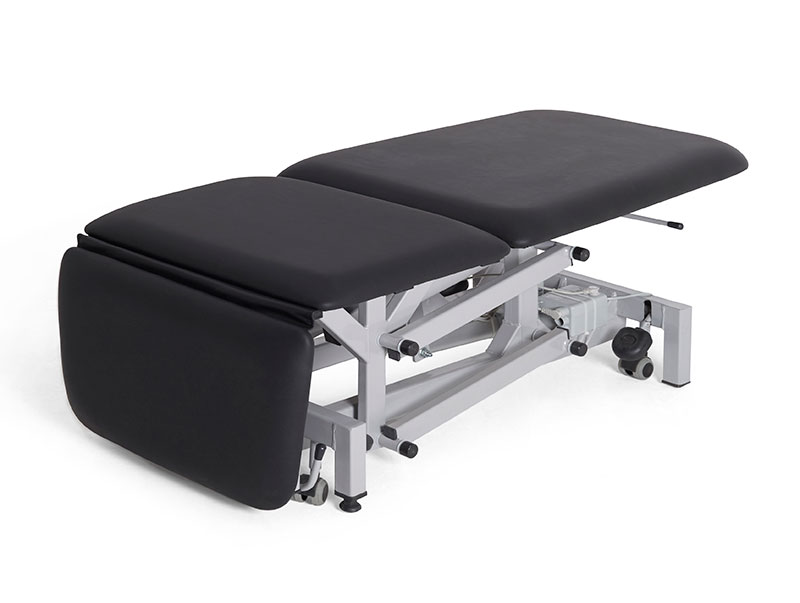

This robust, versatile and compact drop end three section couch allows for optimum use of smaller treatment areas. With the foot section dropping to 90º, the couch is ideal for use in a wide range of healthcare and clinical environments.

SPEC SHEET

Standard Specification

  • Choice of 2 models - hydraulic or electric height elevation
  • Safe working load and lifting capacity of 250kg (39 stone)
  • Gas spring assisted back rest from -30º to +85º
  • Excellent height range from 48cm to 97cm
  • Purpose made precision bearings on all pivot points
  • Hoist clearance along entire length of couch
  • Hand switch fitted as standard on electric models
  • The power assisted head section incorporates anti-trap design
  • 50mm high density flame-retardant foam
  • Antimicrobial contoured upholstery
  • Fully compliant and CE marked
TMDEE - Drop End Electric Multi Purpose Couch
TMDEH - Drop End Hydraulic Multi Purpose Couch

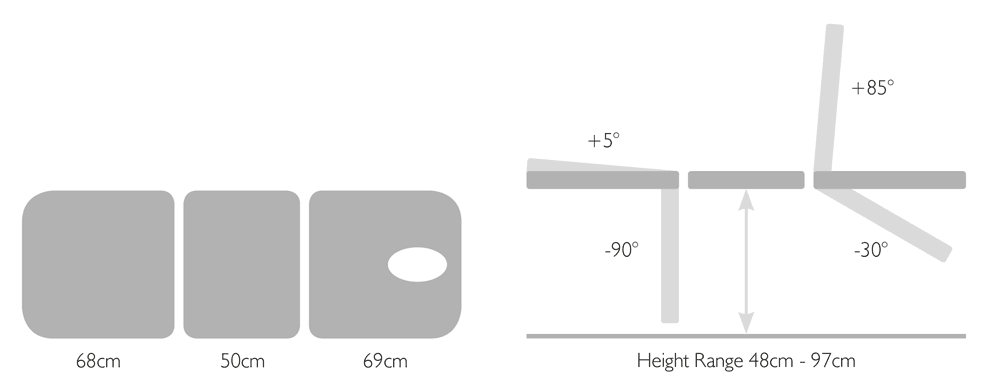

dimensions
  • Motorised backrest
  • Single foot switch operation for electric models
  • Double foot switch operation for electric models
  • Paper towel holder
  • Cot sides (powder coated, chrome plated or padded)
  • Breathing hole and plug
  • Length: 192cm (head 69cm, seat 50cm, foot 68cm)
  • Width: 65cm
  • Safe Load: 250kg
  • Height range: 48cm - 97cm
  • 3 year warranty on moving components
  • Lifetime warranty on frame
  • EEC classification - MDD93/42/EEC Annex IX Class 1
  • IP rating - IPx4
  • Electrical standard - IEC601 Part 1+ 60601. P (EN)
  • Vinyl flame retardant to CRIB5 (BS7176 inc. foam)
  • Foam to BS 5852: Part 2: 1982, Ignition Source 5 (CRIB5)
