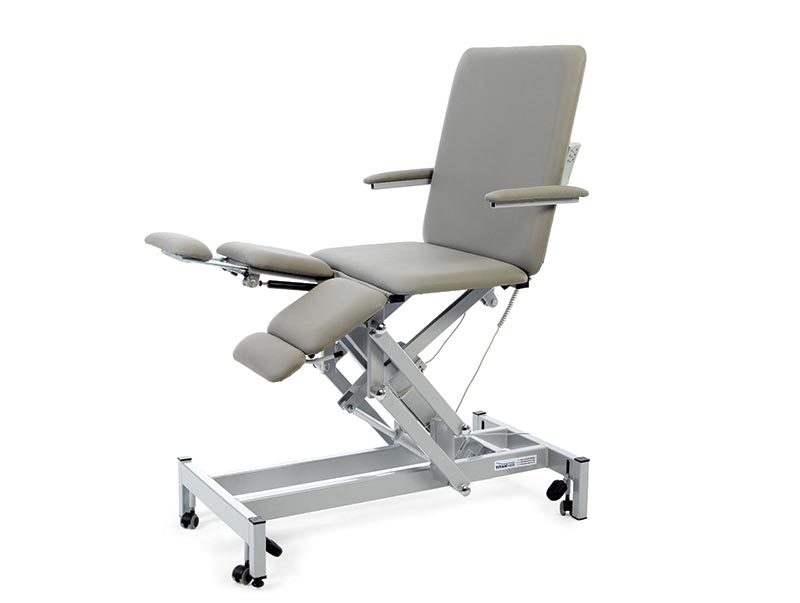

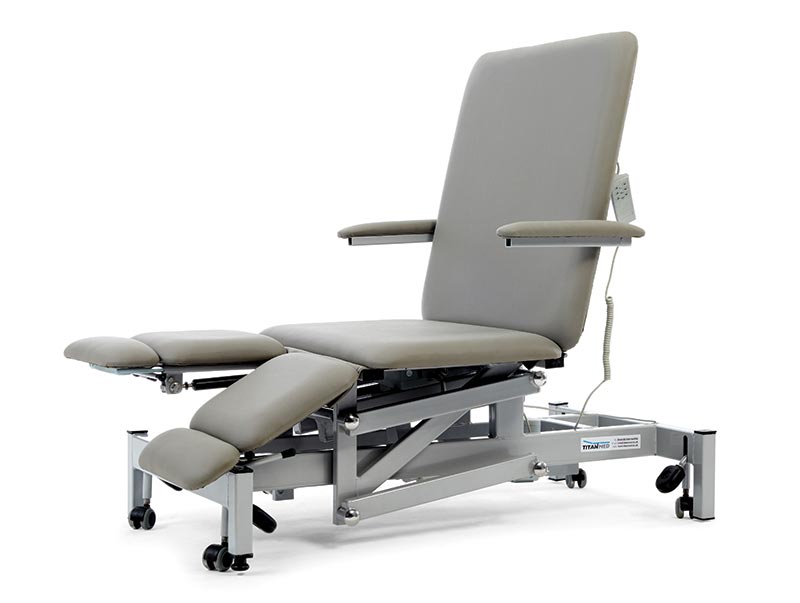

BARIATRIC

PODIATRY CHAIR

A very strong, robust and aesthetically pleasing podiatry couch designed to meet the increasing need to cater for the heavier patient with electric height and backrest functions as standard. Our bariatric podistry couch features 55mm retractable positioning casters with an adjustable self-levelling foot making them ideal for a wide range of healthcare environments and treatment procedures.

Standard Specification

  • Excellent height range from 48cm (18”) to 97cm (38”)
  • Split and extending leg section
  • Safe working load and lifting capacity of 350kg (55 stone)
  • Motorised back rest from -25 to +85 degrees
  • Stay level swing back arm rests for easy patient access (arms also removable)
  • Purpose made precision bearings on all pivot points
  • Electric height elevation
  • The power assisted head section incorporates anti-trap design
  • Hand switch fitted as standard
  • Hoist clearance along entire length of couch
  • 50mm high density flame-retardant foam
  • Antimicrobial contoured upholstery
  • Fully compliant and CE marked

TMBP - Bariatric podiatry electric height elevation

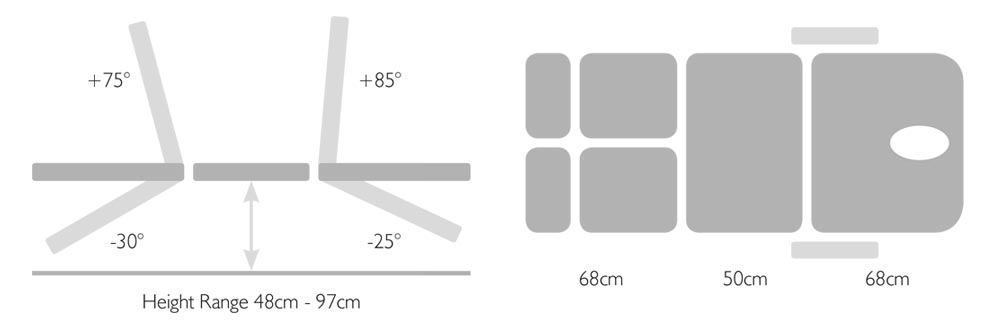

dimensions
  • Double foot switch
  • Paper towel holder
  • Breathing hole and plug
  • Length: 190cm
  • Width: 76cm
  • Height range: 48cm - 97cm
  • Safe Load: 350kg
  • 1 year warranty on moving components
  • 3 year warranty on frame
  • IP rating - IPx4
  • EEC classification - MDD93/42/EEC Annex IX Class 1
  • Electrical standard - IEC601 Part 1+ 60601. P (EN)
  • Vinyl flame retardant to CRIB5 (BS7176 inc. foam)
  • Foam to BS 5852: Part 2: 1982, Ignition Source 5 (CRIB5)
